The robust multiturn absolute encoders AM… 40 and AM…H 40 can be deployed in a wide variety of applications to detect positions and rotational speeds in rolling and steel mills, in mining operations as well as in ports and crane systems. They provide precise information about the position of the shaft and the number of revolutions. The multiturn absolute encoders are used, for example, in hoist gear applications to determine the exact position at all times.
Additional encoders can be easily attached to the second shaft end.
The multiturn absolute encoders of the AM… 40 series are characterized by their thick-walled, robust housing, which very safely protects the state-of-the-art electronics.
High speeds up to 6000 rpm (solid shaft) and 4000 rpm (hollow shaft)
Encapsulated electronics protected even when terminal box is open
All screwed connections are vibration resistant
Positive connection with feather key / feather keyway
AM… 40: multiturn absolute encoders for use in heavy industry
The multiturn absolute encoders of the AM… 40 series offer a very long service lifetime and high availability due to their robust design.
High degree of protection up to IP66 / IP67
High shock and vibration resistance
Large bearings with high dynamic load rating
Wide temperature range: -25 °C to +85 °C
Hybrid bearings protect against shaft currents (hollow shaft)
The multiturn absolute encoders of the AM… 40 series offer several interfaces and the option of adding additional devices. They can be flexibly adapted to the area of application.
Hollow shafts up to Ø 20 mm
Solid shafts up to Ø 14 mm
Resolution: up to 16 bit singleturn and 12 bit multiturn
Interfaces: SSI, DeviceNet, Profibus
Second signal output (incremental)
Generously dimensioned terminal box

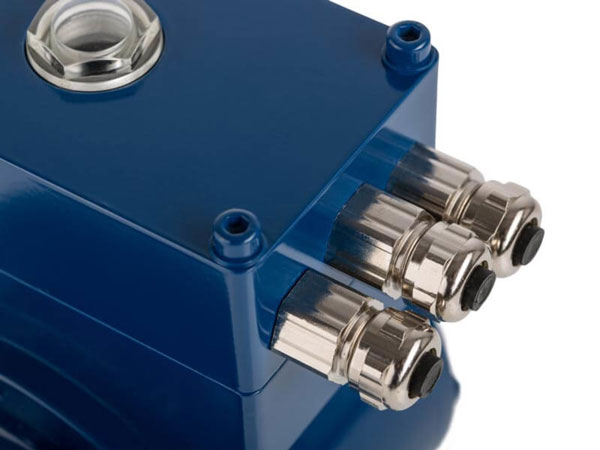

Connection options with a variety of connectors or cables
Saltwater-proof, wet areas in rolling mills
Suitable attachments and mounting service (optional)
